Photovoltaic String Inverters
Small Power Series(1-phase output)

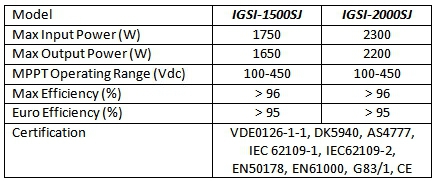

InfluxGreen IGSI-1500SJ, IGSI-2000SJ
IGSI “J” series of 1.5kW and 2.0kW family of grid-tied photovoltaic inverters are suitable for use in both residential and light industrial applications.
The rugged IP65 rated outdoor enclosure is designed to withstand the harshest of environment, giving home-owners a peace of mind.
The transformerless design of the inverters offers one of the highest efficiency of more than 96%. The high speed maximum power point tracking (MPPT) function provides real time tracking as well as improving overall energy harvesting.
The design utilizes conversion process with minimal losses and maximum reliability. The objective is to provide a cost effective, reliable and efficient grid-in feed system with maximum energy harvesting capabilities.

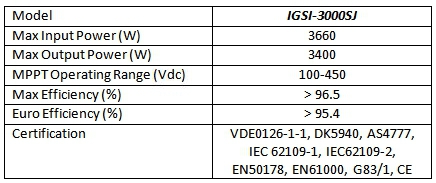

InfluxGreen IGSI-3000SJ
IGSI “J” series of 3.0kW family of grid-tied photovoltaic inverters are suitable for use in both residential and light industrial applications.
The rugged IP65 rated outdoor enclosure is designed to withstand the harshest of environment, giving home-owners a peace of mind.
The transformerless design of the inverters offers one of the highest efficiency of more than 96.5%. The high speed maximum power point tracking (MPPT) function provides real time tracking as well as improving overall energy harvesting.
The design utilizes conversion process with minimal losses and maximum reliability. The objective is to provide a cost effective, reliable and efficient grid-in feed system with maximum energy harvesting capabilities.

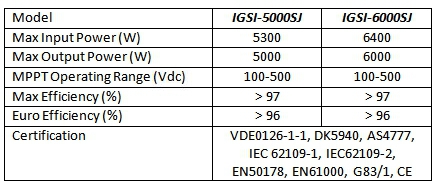

InfluxGreen IGSI-5000SJ, IGSI-6000SJ
IGSI “J” series of 5.0kW and 6.0kW family of grid-tied photovoltaic inverters are suitable for use in both residential and light industrial applications.
The rugged IP65 rated outdoor enclosure is designed to withstand the harshest of environment, giving home-owners a peace of mind.
The transformerless design of the inverters offers one of the highest efficiency of more than 97%. The high speed maximum power point tracking (MPPT) function provides real time tracking as well as improving overall energy harvesting.
The design utilizes conversion process with minimal losses and maximum reliability. The objective is to provide a cost effective, reliable and efficient grid-in feed system with maximum energy harvesting capabilities.

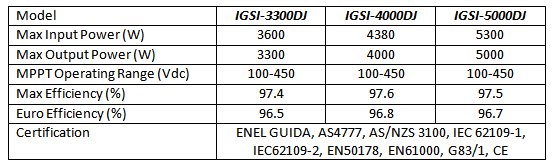

InfluxGreen IGSI-3300DJ, IGSI-4000DJ, IGSI-5000DJ
IGSI “J” series of 3.3kW to 5.0kW family of dual MPPT grid-tied photovoltaic inverters are suitable for use in both residential and light industrial applications.
The rugged IP65 rated outdoor enclosure is designed to withstand the harshest of environment, giving home-owners a peace of mind.
The transformerless design of the inverters offers one of the highest efficiency of more than 97.4%. The high speed maximum power point tracking (MPPT) function provides real time tracking as well as improving overall energy harvesting.
The design utilizes conversion process with minimal losses and maximum reliability. The dual MPPT channels (independently of each other) provide flexibility and allow for real time power tracking independently. The objective is to provide a cost effective, reliable and efficient grid-in feed system with maximum energy harvesting capabilities.

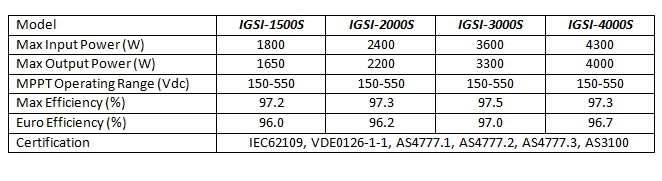

InfluxGreen IGSI-1500S, IGSI-2000S, IGSI-3000S, IGSI-4000S
The IGSI-1500S to IGSI-4000S PV string inverters are suitable for use in both residential and small industrial applications, with the 3kW and 4kW model being the ideal size for a typical roof-top application of an average-sized family home.
The rugged IP65 rated outdoor enclosure is designed to withstand the harshest of environment, giving home-owners a peace of mind.
The transformerless design of the inverters offers one of the highest efficiency of more than 97%. The high speed maximum power point tracking (MPPT) function provides real time tracking as well as improving overall energy harvesting.
The wide input range of the inverter allows flexibility in the system design, making it suitable for low power installation with a reduced number of solar panel strings.
Medium Power Series(3-phase output)

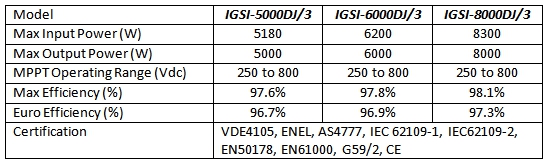

InfluxGreen IGSI-5000DJ/3, IGSI-6000DJ/3, IGSI-8000DJ/3
IGSI “J” 3-phase series of 5kW, 6kW and 8kW family of grid-tied photovoltaic inverters are suitable for use in both commercial and light to medium industrial applications.
The rugged IP65 rated outdoor enclosure is designed to withstand the harshest of environment, giving the users a peace of mind.
The transformerless design of the inverters offers one of the highest efficiency of more than 97.6%. The high speed maximum power point tracking (MPPT) function provides real time tracking as well as improving overall energy harvesting.
The design utilizes conversion process with minimal losses and maximum reliability. The dual MPPT channels (independently of each other) provide flexibility and allow for real time power tracking independently. The objective is to provide a cost effective, reliable and efficient grid-in feed system with maximum energy harvesting capabilities.
InfluxGreen IGSI-10000DJ, IGSI-12000DJ
IGSI “J” 3-phase series of 10kW and 12kW family of grid-tied photovoltaic inverters are suitable for use in both commercial and light to medium industrial applications.
The rugged IP65 rated outdoor enclosure is designed to withstand the harshest of environment, giving the users a peace of mind.
The transformerless design of the inverters offers one of the highest efficiency of more than 98.2%. The high speed maximum power point tracking (MPPT) function provides real time tracking as well as improving overall energy harvesting.
The design utilizes conversion process with minimal losses and maximum reliability. The dual MPPT channels (independently of each other) provide flexibility and allow for real time power tracking independently. The objective is to provide a cost effective, reliable and efficient grid-in feed system with maximum energy harvesting capabilities.
