Photovoltaic Central Inverters

PV Inverter

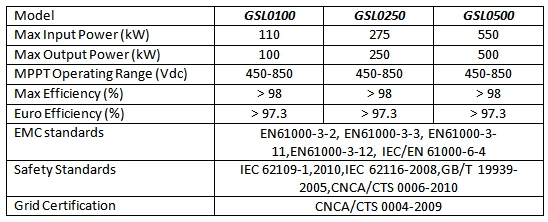

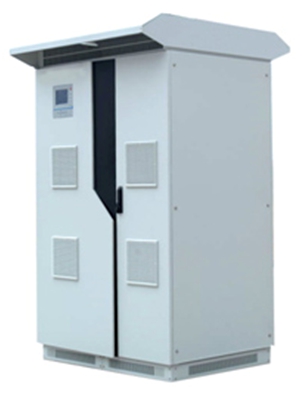

InfluxGreen GSL0100, GSL0250, GSL0500

InfluxGreen GSL series of central inverters are ideally suited for large size photovoltaic systems and solar plants ranging from 250kW to MW. They provide the necessary conversion and allow economic in-feed of solar energy into conventional power grids.

The transformerless design of the inverters offers one of the highest efficiency of more than 98%. The high speed maximum power point tracking (MPPT) function provides real time tracking as well as improving overall energy harvesting.

The design utilizes conversion process with minimal losses and maximum reliability. The objective is to provide a cost effective, reliable and efficient grid-in feed system with maximum energy harvesting capabilities.

PV Inverter
